2010–2015 Prius Gen 3 Battery Harness Kit with Bus Bars & Nuts
Acenbay MNB322 combines a replacement voltage-sensing wire harness with nickel-plated copper bus bars and stainless steel nuts for...
SKU:
MNB322
- $79.97
- $79.97
- Unit price
- per
Need help choosing?
Find your vehicle or call (435) 669-0020 for help matching your year, model and battery configuration.
Plan your purchase

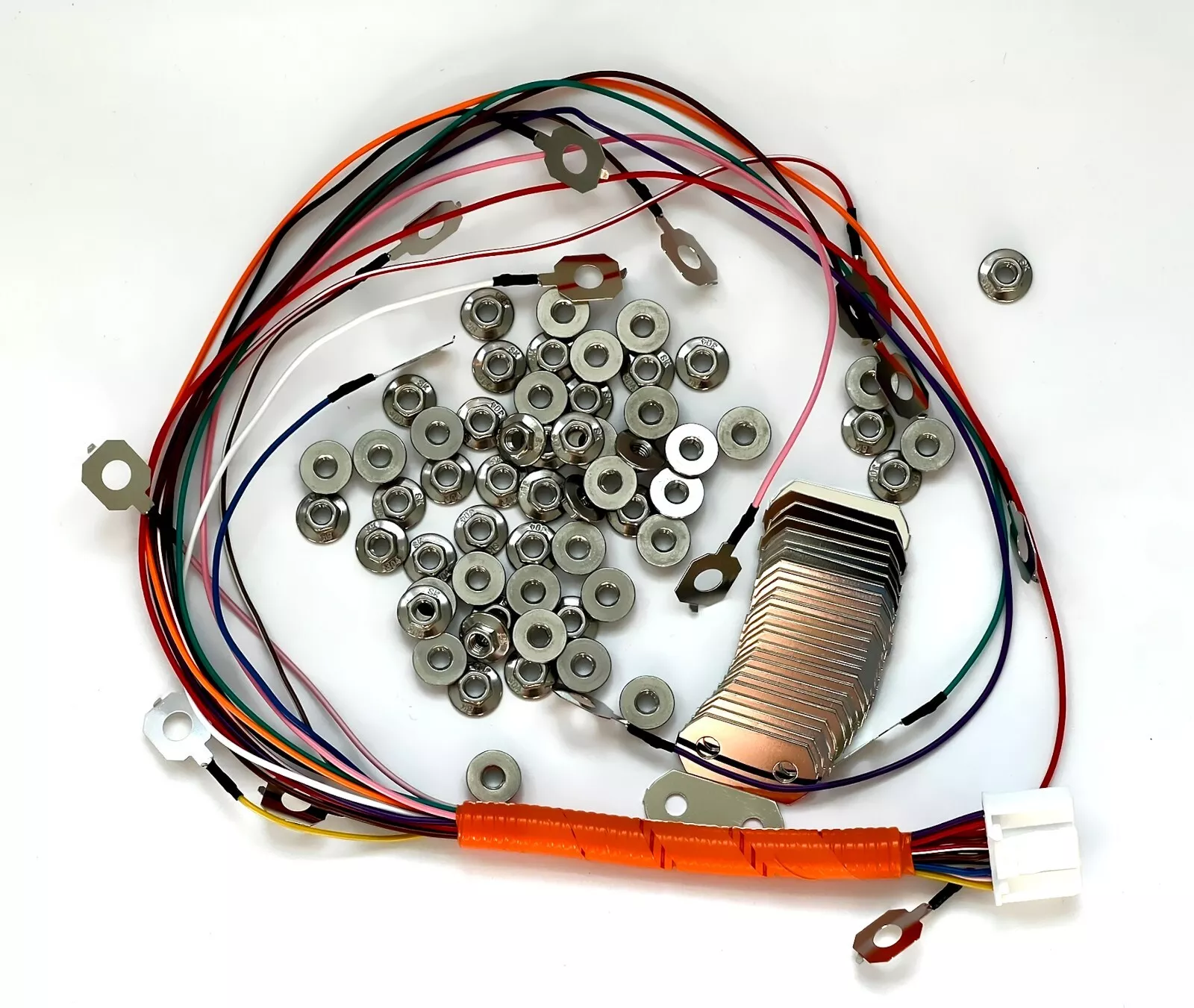

Acenbay MNB322 combines a replacement voltage-sensing wire harness with nickel-plated copper bus bars and stainless steel nuts for 2010–2015 Toyota Prius Gen 3 battery service.
Product details
- SKU: MNB322
- Manufacturer part number: WHG3NP2658
- Battery configuration: 28 modules
- Package: Wire harness, nickel-plated copper bus bars and stainless steel wide-flange nuts
- Housing: Reuse the existing orange frame/housing
- Sensor-tab material: Copper alloy
Vehicle compatibility
2010–2015 Toyota Prius Gen 3.
Match the connector layout, existing part number and installed battery configuration. Similar vehicle years or photos do not establish interchangeability. Prius v and Lexus CT200h require separate confirmation of the connectors, layout and part number.
Installation and selection
Harness revision check: For the revised XLPE-wire harness, follow the diagram label attached to its packaging. The older FLRY-B diagram is not valid for this revised harness. Do not infer the orange-wire position from its length or from older product photographs. If the supplied label is missing or unclear, contact us before installation.
Hybrid batteries contain high voltage. Have a qualified technician follow the vehicle service manual and the battery manufacturer’s instructions, using the required protective equipment.
Wiring note: wire colors do not match the factory wiring diagram. Install the harness in the existing housing in the sequence specified on the instructions supplied with the exact harness. These are battery-service components; a complete hybrid battery pack is not included.
Contact My New Battery with your vehicle year, model, installed battery configuration and existing part details before ordering if the match is uncertain.
For an included orange housing, see the Gen 3 harness assembly. Harness-only option also available.
Warranty options and support
Eligible hybrid battery packs offer a Standard 2-Year or optional Platinum 10-Year warranty, both with unlimited miles. Coverage is for the original purchaser and begins on delivery. Select the plan offered for this product.
Read the full hybrid battery warranty options, eligibility and exclusions. For other products, consult the warranty policy, product listing and your order confirmation.
Need help with a claim? Contact tech@mynewbattery.com with your order number. Request an RMA before returning any item.
Shipping and returns
Shipping rates are shown at checkout. Review our shipping policy for processing, delivery estimates and destination restrictions. For a product-specific estimate, contact us with your ZIP code before ordering.
Eligible new, unused items have a 30-day return window from delivery. Request an RMA before sending anything back. No restocking fee applies to approved returns. Condition requirements, exclusions and return shipping are detailed in our return and refund policy.
